uart_stdout_mcu.h File Reference

#include "FD32M0P.h"
#include "uart.h"

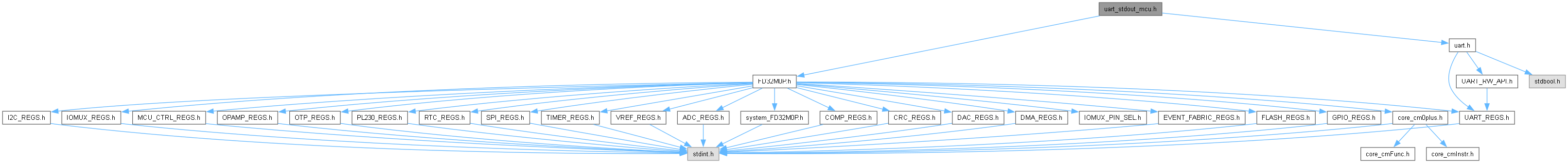

Include dependency graph for uart_stdout_mcu.h:

This graph shows which files directly or indirectly include this file:

Macros
#define	UART_STDIO   UART0_REGS
#define	STDIO_BAUD_RATE   0

Functions
void	UartStdOutInit (void)
	__attribute__ ((section(".sram_code"))) void UartPuts(const char *data_char_arr)
void	UartEndSimulation (void)
void	UartPass (void)
void	UartFail (void)
void	itoa_mcu (uint32_t value, char *str, int base)
void	print_int_var (const char *prefix, int var, bool is_hex)

Macro Definition Documentation

UART_STDIO

#define UART_STDIO   UART0_REGS

Referenced by __attribute__(), UartPuts(), and UartStdOutInit().

STDIO_BAUD_RATE

#define STDIO_BAUD_RATE   0

Referenced by UartStdOutInit().

Function Documentation

UartStdOutInit()

void UartStdOutInit

(

void

)

References STDIO_BAUD_RATE, SystemFrequency, uart_cfg(), UART_CFG_STOP_BIT_ONE, UART_CFG_WRD_LEN_8_BITS, UART_CLK_SEL_CLK_APB, UART_CTRL_OS_FACTOR_3, UART_CTRL_TX_EN_HW, UART_CTRL_UART_MSB_LAST, uart_en(), uart_init(), and UART_STDIO.

Referenced by main().

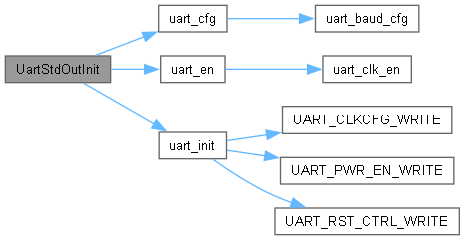

Here is the call graph for this function:

Here is the caller graph for this function:

__attribute__()

__attribute__

(

(section(".sram_code"))

)

const

References __attribute__(), UART_STDIO, and UartPutc().

Here is the call graph for this function:

UartEndSimulation()

void UartEndSimulation

(

void

)

References UartPutc().

Here is the call graph for this function:

UartPass()

void UartPass

(

void

)

References UartPutc().

Here is the call graph for this function:

UartFail()

void UartFail

(

void

)

References UartPutc().

Here is the call graph for this function:

itoa_mcu()

void itoa_mcu	(	uint32_t	value,
		char *	str,
		int	base )

Lightweight itoa implementation Converts an integer to a null-terminated string

Parameters

value	The integer value to convert
str	Pointer to buffer that receives the result (must be large enough)
base	Numerical base for conversion (16, 10)

Referenced by print_int_var().

Here is the caller graph for this function:

print_int_var()

void print_int_var	(	const char *	prefix,
		int	var,
		bool	is_hex )

References itoa_mcu(), and UartPuts().

Here is the call graph for this function:
