uart.h File Reference

#include "UART_REGS.h"
#include "UART_RW_API.h"
#include <stdbool.h>

Include dependency graph for uart.h:

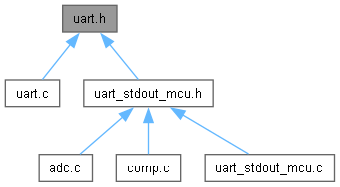

This graph shows which files directly or indirectly include this file:

Data Structures
struct	uart_cfg_s
	UART Configuration Struct. More...
struct	uart_fifo_cfg_s
	UART Fifo Configuration Struct. More...

Macros
#define	UART_CFG_DEFAULT
	Default Initializer for UART Configuration Struct.
#define	UART_FIFO_CFG_DEFAULT
	Default Initializer for UART Fifo Configuration Struct.

Functions
void	uart_init (UART_REGS_s *regs)
	This function initalizes the UART, enables power, resets the peripheral, and does reset status clear, blocks asynchronous fast clock requests.
void	uart_cfg (UART_REGS_s *regs, const uart_cfg_s *cfg)
	This function configures the UART, data frame, clock, baud rate configurations, transmission and reception enables.
void	uart_baud_cfg (UART_REGS_s *regs, uint32_t baud_rate, uint32_t clk_freq, uint32_t oversampling)
	This function calculates the UART baud rate, based on the inputs provided.
void	uart_clk_en (UART_REGS_s *regs)
	This function enables the UART clk.
void	uart_clk_dis (UART_REGS_s *regs)
	This function disables the UART clk.
void	uart_en (UART_REGS_s *regs)
	This function enables the UART clock and UART peripheral.
void	uart_dis (UART_REGS_s *regs)
	This function disables the UART peripheral.
void	uart_fifo_cfg (UART_REGS_s *regs, const uart_fifo_cfg_s *fifo_cfg)
	This function configures the UART transmit and receive fifos, does fifo enable or disable.
uint32_t	uart_txfifo_fill_nonblocking (UART_REGS_s *regs, const uint8_t *buffer, uint32_t num_bytes)
	This non blocking function fills the UART transmit fifo, user needs to update the buffer pointer and number of data bytes to be written, returns number of data bytes written.
bool	uart_txfifo_fill_static_nonblocking (UART_REGS_s *regs, const uint8_t *buffer, uint32_t num_bytes, uint32_t rst_int_ctr)
	This non blocking static function fills the UART transmit fifo, auto updates the buffer pointer and number of bytes to be written, returns a boolean for transaction done.
void	uart_txfifo_fill_blocking (UART_REGS_s *regs, const uint8_t *buffer, uint32_t num_bytes)
	This blocking function fills the UART transmit fifo.
void	uart_puts (UART_REGS_s *regs, const char *data_char_arr)
	This blocking function puts a string in the UART transmit fifo.
static uint8_t	uart_putc (UART_REGS_s *regs, const unsigned char data_char)
	This static inline function puts a charcter in UART transmit fifo, returns the character written.
uint32_t	uart_rxfifo_drain_nonblocking (UART_REGS_s *regs, uint8_t *buffer, uint32_t num_bytes)
	This non blocking function drains the UART receive fifo, user needs to update the buffer pointer and number of data bytes to be read, returns number of data bytes read.
bool	uart_rxfifo_drain_static_nonblocking (UART_REGS_s *regs, uint8_t *buffer, uint32_t num_bytes, uint32_t rst_int_ctr)
	This non blocking static function drains the UART receive fifo, auto updates the buffer pointer and number of data bytes to be read returns a boolean for transaction done.
void	uart_rxfifo_drain_blocking (UART_REGS_s *regs, uint8_t *buffer, uint32_t num_bytes)
	This blocking function drains the UART receive fifo.
static uint8_t	uart_getc (UART_REGS_s *regs)
	This static inline function returns a charcter from the UART receive fifo.
void	uart_read_cfg (UART_REGS_s *regs, uart_cfg_s *rd_cfg)
	This function reads the UART configurations from the register space, puts them in the configuration struct provided in the input.
