romtable_tests.c File Reference

#include "CMSDK_CM0plus.h"
#include "core_cm0plus.h"
#include <stdio.h>
#include "uart_stdout.h"
#include "mcu_debugtester_interface.h"
#include "CMSDK_driver.h"
#include "config_id.h"
#include "debugtester_functions.h"
#include "romtable_tests.h"

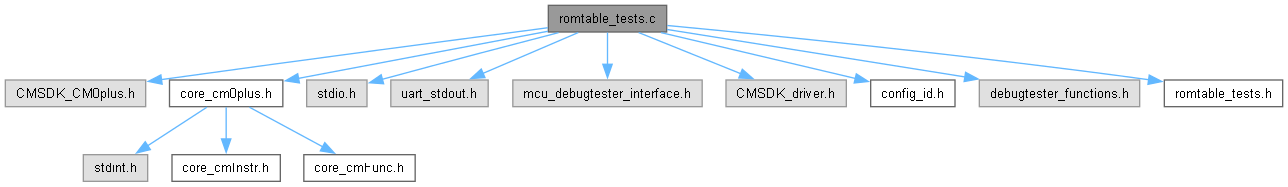

Include dependency graph for romtable_tests.c:

Macros
#define	COMPMAX   10

Functions
void	FollowCoreSightPointer (uint32_t cs_pointer)
uint32_t	CheckVal (char *name, uint32_t actual, uint32_t expected)
void	CheckHex (char *name, uint32_t actual, uint32_t expected)
void	CheckPresence (char *name, uint32_t actual, uint32_t expected)
void	InitComponentsList (void)
void	ReportResults (void)
CS_Type *	FindComponent (uint32_t base_address)
void	GetCoreSightIDs (CS_Type *comp_ptr)
void	CheckDisplayCID (CS_Type *comp_ptr)
void	CheckDisplayPID (CS_Type *comp_ptr)
void	DisplayDecodedPID (CS_Type *comp_ptr)
uint32_t	LookupARMCSPart (uint32_t)
int	main (void)

Variables
CS_Type	Components [COMPMAX]
uint32_t	NumRomTables = 0
uint32_t	Errors = 0

Macro Definition Documentation

COMPMAX

#define COMPMAX   10

Referenced by FindComponent(), InitComponentsList(), and ReportResults().

Function Documentation

FollowCoreSightPointer()

void FollowCoreSightPointer

(

uint32_t

cs_pointer

)

References CheckDisplayCID(), CheckDisplayPID(), Errors, FindComponent(), FollowCoreSightPointer(), and GetCoreSightIDs().

Referenced by FollowCoreSightPointer(), and main().

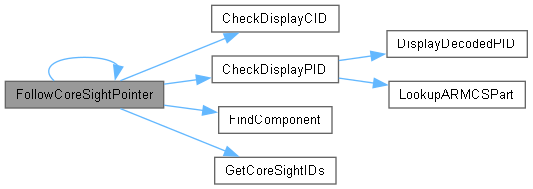

Here is the call graph for this function:

Here is the caller graph for this function:

CheckVal()

uint32_t CheckVal	(	char *	name,
		uint32_t	actual,
		uint32_t	expected )

References CheckHex().

Here is the call graph for this function:

CheckHex()

void CheckHex	(	char *	name,
		uint32_t	actual,
		uint32_t	expected )

References Errors.

Referenced by CheckVal().

Here is the caller graph for this function:

CheckPresence()

void CheckPresence	(	char *	name,
		uint32_t	actual,
		uint32_t	expected )

References Errors.

InitComponentsList()

void InitComponentsList

(

void

)

References COMPMAX, and Components.

Referenced by main().

Here is the caller graph for this function:

ReportResults()

void ReportResults

(

void

)

References COMPMAX, Components, and Errors.

Referenced by main().

Here is the caller graph for this function:

FindComponent()

CS_Type * FindComponent

(

uint32_t

base_address

)

References COMPMAX, Components, and Errors.

Referenced by FollowCoreSightPointer().

Here is the caller graph for this function:

GetCoreSightIDs()

void GetCoreSightIDs

(

CS_Type *

comp_ptr

)

References ARM_JEP_CONT, ARM_JEP_ID, and NumRomTables.

Referenced by FollowCoreSightPointer().

Here is the caller graph for this function:

CheckDisplayCID()

void CheckDisplayCID

(

CS_Type *

comp_ptr

)

Referenced by FollowCoreSightPointer().

Here is the caller graph for this function:

CheckDisplayPID()

void CheckDisplayPID

(

CS_Type *

comp_ptr

)

References DisplayDecodedPID(), EXPECTED_CUST_JEP_CONT, EXPECTED_CUST_JEP_ID, and LookupARMCSPart().

Referenced by FollowCoreSightPointer().

Here is the call graph for this function:

Here is the caller graph for this function:

DisplayDecodedPID()

void DisplayDecodedPID

(

CS_Type *

comp_ptr

)

Referenced by CheckDisplayPID().

Here is the caller graph for this function:

LookupARMCSPart()

uint32_t LookupARMCSPart

(

uint32_t

partnum

)

References ARMCSParts, and NumARMCSParts.

Referenced by CheckDisplayPID().

Here is the caller graph for this function:

main()

int main

(

void

)

References Errors, EXPECTED_DBG, EXPECTED_JTAGnSW, FollowCoreSightPointer(), InitComponentsList(), MCU_CPU_NAME, ReportResults(), TEST_PASS, and UartStdOutInit().

Here is the call graph for this function:

Variable Documentation

Components

CS_Type Components[COMPMAX]

Referenced by FindComponent(), InitComponentsList(), and ReportResults().

NumRomTables

uint32_t NumRomTables = 0

Referenced by GetCoreSightIDs().

Errors

uint32_t Errors = 0

Referenced by CheckHex(), CheckPresence(), FindComponent(), FollowCoreSightPointer(), main(), and ReportResults().
