UART_HAL

Data Structures
struct	uart_cfg_s
	UART Configuration Struct. More...
struct	uart_fifo_cfg_s
	UART Fifo Configuration Struct. More...

Macros
#define	UART_CFG_DEFAULT
	Default Initializer for UART Configuration Struct.
#define	UART_FIFO_CFG_DEFAULT
	Default Initializer for UART Fifo Configuration Struct.

Functions
void	uart_init (UART_REGS_s *regs)
	This function initalizes the UART, enables power, resets the peripheral, and does reset status clear, blocks asynchronous fast clock requests.
void	uart_cfg (UART_REGS_s *regs, const uart_cfg_s *cfg)
	This function configures the UART, data frame, clock, baud rate configurations, transmission and reception enables.
void	uart_baud_cfg (UART_REGS_s *regs, uint32_t baud_rate, uint32_t clk_freq, uint32_t oversampling)
	This function calculates the UART baud rate, based on the inputs provided.
void	uart_clk_en (UART_REGS_s *regs)
	This function enables the UART clk.
void	uart_clk_dis (UART_REGS_s *regs)
	This function disables the UART clk.
void	uart_en (UART_REGS_s *regs)
	This function enables the UART clock and UART peripheral.
void	uart_dis (UART_REGS_s *regs)
	This function disables the UART peripheral.
void	uart_fifo_cfg (UART_REGS_s *regs, const uart_fifo_cfg_s *fifo_cfg)
	This function configures the UART transmit and receive fifos, does fifo enable or disable.
uint32_t	uart_txfifo_fill_nonblocking (UART_REGS_s *regs, const uint8_t *buffer, uint32_t num_bytes)
	This non blocking function fills the UART transmit fifo, user needs to update the buffer pointer and number of data bytes to be written, returns number of data bytes written.
bool	uart_txfifo_fill_static_nonblocking (UART_REGS_s *regs, const uint8_t *buffer, uint32_t num_bytes, uint32_t rst_int_ctr)
	This non blocking static function fills the UART transmit fifo, auto updates the buffer pointer and number of bytes to be written, returns a boolean for transaction done.
void	uart_txfifo_fill_blocking (UART_REGS_s *regs, const uint8_t *buffer, uint32_t num_bytes)
	This blocking function fills the UART transmit fifo.
void	uart_puts (UART_REGS_s *regs, const char *data_char_arr)
	This blocking function puts a string in the UART transmit fifo.
static uint8_t	uart_putc (UART_REGS_s *regs, const unsigned char data_char)
	This static inline function puts a charcter in UART transmit fifo, returns the character written.
uint32_t	uart_rxfifo_drain_nonblocking (UART_REGS_s *regs, uint8_t *buffer, uint32_t num_bytes)
	This non blocking function drains the UART receive fifo, user needs to update the buffer pointer and number of data bytes to be read, returns number of data bytes read.
bool	uart_rxfifo_drain_static_nonblocking (UART_REGS_s *regs, uint8_t *buffer, uint32_t num_bytes, uint32_t rst_int_ctr)
	This non blocking static function drains the UART receive fifo, auto updates the buffer pointer and number of data bytes to be read returns a boolean for transaction done.
void	uart_rxfifo_drain_blocking (UART_REGS_s *regs, uint8_t *buffer, uint32_t num_bytes)
	This blocking function drains the UART receive fifo.
static uint8_t	uart_getc (UART_REGS_s *regs)
	This static inline function returns a charcter from the UART receive fifo.
void	uart_read_cfg (UART_REGS_s *regs, uart_cfg_s *rd_cfg)
	This function reads the UART configurations from the register space, puts them in the configuration struct provided in the input.

Detailed Description

---

Data Structure Documentation

uart_cfg_s

struct uart_cfg_s

UART Configuration Struct.

Data Fields
UART_CLK_SEL_E	clk_sel
uint8_t	clk_div
uint32_t	baud_rate
uint32_t	clk_freq
UART_CTRL_OS_E	oversampling
UART_CFG_WRD_LEN_E	word_length
bool	parity_en
bool	even_parity
UART_CFG_STCK_PAR_E	stick_parity
UART_CFG_STOP_BIT_E	num_stop_bits
UART_CTRL_UART_MSB_E	msb_first
bool	majority_voting_en
bool	loopback_en
UART_CTRL_TX_EN_E	tx_en
bool	rx_en
UART_CTRL_TX_OUT_EN_E	tx_out_en
UART_CTRL_TX_OUT_CTRL_E	tx_out_ctrl
bool	cts_en
bool	rts_en
bool	rts_val
uint8_t	glitch_filter_width
uint8_t	rx_timeout_val

uart_fifo_cfg_s

struct uart_fifo_cfg_s

UART Fifo Configuration Struct.

Data Fields
UART_FIFOLS_TX_FIFO_LS_E	tx_fifo_lvl_sel
UART_FIFOLS_RX_FIFO_LS_E	rx_fifo_lvl_sel
uint32_t	fifo_en

Macro Definition Documentation

UART_CFG_DEFAULT

#define UART_CFG_DEFAULT

Value:

   { \
   .clk_sel         = UART_CLK_SEL_CLK_APB, \
   .clk_div         = 0, \
   .oversampling    = UART_CTRL_OS_FACTOR_16, \
   .word_length     = UART_CFG_WRD_LEN_8_BITS, \
   .num_stop_bits   = UART_CFG_STOP_BIT_ONE, \
   .msb_first       = UART_CTRL_UART_MSB_LAST, \
   .tx_en           = UART_CTRL_TX_EN_HW, \
   .rx_timeout_val  = 10 \
}

Default Initializer for UART Configuration Struct.

UART_FIFO_CFG_DEFAULT

#define UART_FIFO_CFG_DEFAULT

Value:

    { \
    .tx_fifo_lvl_sel = UART_FIFOLS_TX_FIFO_LS_EMPTY, \
    .rx_fifo_lvl_sel = UART_FIFOLS_RX_FIFO_LS_ALMOST_EMPTY, \
    .fifo_en = 1 \
}

Default Initializer for UART Fifo Configuration Struct.

Function Documentation

uart_init()

void uart_init

(

UART_REGS_s *

regs

)

This function initalizes the UART, enables power, resets the peripheral, and does reset status clear, blocks asynchronous fast clock requests.

Parameters

uart_regs

: pointer to the UART register space

Return values

void

References UART_RST_STS_u::packed_w, UART_REGS_s::RST_STS, UART_CLKCFG_BLCK_ASYNC_KEY, UART_CLKCFG_WRITE(), UART_PWR_EN_PWR_EN_KEY, UART_PWR_EN_WRITE(), UART_RST_CTRL_RST_KEY, UART_RST_CTRL_RST_STS_CLR_KEY, UART_RST_CTRL_WRITE(), and UART_RST_STS_RST_STS_MASK.

Referenced by UartStdOutInit().

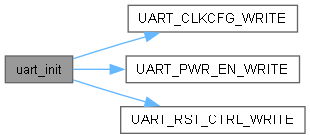

Here is the call graph for this function:

Here is the caller graph for this function:

uart_cfg()

void uart_cfg	(	UART_REGS_s *	regs,
		const uart_cfg_s *	cfg )

This function configures the UART, data frame, clock, baud rate configurations, transmission and reception enables.

Parameters

uart_regs	: pointer to the UART register space
uart_cfg_struct	: UART configuration struct

Return values

void

References uart_cfg_s::baud_rate, UART_REGS_s::CFG, UART_REGS_s::CLK_DIV, uart_cfg_s::clk_div, uart_cfg_s::clk_freq, UART_REGS_s::CLK_SEL, uart_cfg_s::clk_sel, UART_REGS_s::CTRL, uart_cfg_s::cts_en, uart_cfg_s::even_parity, UART_REGS_s::FIFOLS, UART_REGS_s::GFCTL, uart_cfg_s::glitch_filter_width, uart_cfg_s::loopback_en, uart_cfg_s::majority_voting_en, uart_cfg_s::msb_first, uart_cfg_s::num_stop_bits, uart_cfg_s::oversampling, UART_CLK_SEL_u::packed_w, uart_cfg_s::parity_en, uart_cfg_s::rts_en, uart_cfg_s::rts_val, uart_cfg_s::rx_en, uart_cfg_s::rx_timeout_val, uart_cfg_s::stick_parity, uart_cfg_s::tx_en, uart_cfg_s::tx_out_ctrl, uart_cfg_s::tx_out_en, uart_baud_cfg(), UART_CLK_DIV_CLK_DIV_MASK, UART_CLK_SEL_CLK_SEL_MASK, and uart_cfg_s::word_length.

Referenced by UartStdOutInit().

Here is the call graph for this function:

Here is the caller graph for this function:

uart_baud_cfg()

void uart_baud_cfg	(	UART_REGS_s *	regs,
		uint32_t	baud_rate,
		uint32_t	clk_freq,
		uint32_t	oversampling )

This function calculates the UART baud rate, based on the inputs provided.

Parameters

uart_regs	: pointer to the UART register space
baud_rate	: any of the standard UART baud rates
clk_freq	: clock_frequency
oversampling	: UART oversampling rate

Return values

void

References UART_REGS_s::BRDDEN, and UART_REGS_s::BRDNUM.

Referenced by uart_cfg().

Here is the caller graph for this function:

uart_clk_en()

void uart_clk_en

(

UART_REGS_s *

regs

)

This function enables the UART clk.

Parameters

uart_regs

: pointer to the UART register space

Return values

void

References UART_REGS_s::CLK_CTRL.

Referenced by uart_en().

Here is the caller graph for this function:

uart_clk_dis()

void uart_clk_dis

(

UART_REGS_s *

regs

)

This function disables the UART clk.

Parameters

uart_regs

: pointer to the UART register space

Return values

void

References UART_REGS_s::CLK_CTRL.

uart_en()

void uart_en

(

UART_REGS_s *

regs

)

This function enables the UART clock and UART peripheral.

Parameters

uart_regs

: pointer to the UART register space

Return values

void

References UART_REGS_s::CTRL, and uart_clk_en().

Referenced by UART_CTRL_WRITE(), and UartStdOutInit().

Here is the call graph for this function:

Here is the caller graph for this function:

uart_dis()

void uart_dis

(

UART_REGS_s *

regs

)

This function disables the UART peripheral.

Parameters

uart_regs

: pointer to the UART register space

Return values

void

References UART_REGS_s::CTRL.

uart_fifo_cfg()

void uart_fifo_cfg	(	UART_REGS_s *	regs,
		const uart_fifo_cfg_s *	fifo_cfg )

This function configures the UART transmit and receive fifos, does fifo enable or disable.

Parameters

uart_regs	: pointer to the UART register space
uart_fifo_cfg_struct	: Uart Fifo Configuration Struct

Return values

void

References UART_REGS_s::CTRL, uart_fifo_cfg_s::fifo_en, UART_REGS_s::FIFOLS, uart_fifo_cfg_s::rx_fifo_lvl_sel, and uart_fifo_cfg_s::tx_fifo_lvl_sel.

uart_txfifo_fill_nonblocking()

uint32_t uart_txfifo_fill_nonblocking	(	UART_REGS_s *	regs,
		const uint8_t *	buffer,
		uint32_t	num_bytes )

This non blocking function fills the UART transmit fifo, user needs to update the buffer pointer and number of data bytes to be written, returns number of data bytes written.

Parameters

uart_regs	: pointer to the UART register space
buffer	: pointer to the data buffer
num_bytes	: number of bytes to be written to the transmit fifo

Return values

num_bytes_written

References UART_REGS_s::FIFOSTS, and uart_putc().

Here is the call graph for this function:

uart_txfifo_fill_static_nonblocking()

bool uart_txfifo_fill_static_nonblocking	(	UART_REGS_s *	regs,
		const uint8_t *	buffer,
		uint32_t	num_bytes,
		uint32_t	rst_int_ctr )

This non blocking static function fills the UART transmit fifo, auto updates the buffer pointer and number of bytes to be written, returns a boolean for transaction done.

Parameters

uart_regs	: pointer to the UART register space
buffer	: pointer to the data buffer
num_bytes	: number of bytes to be written to the transmit fifo
rst_int_ctr	: reset the internal counter once transaction is done

Return values

txn_done_status

References UART_REGS_s::FIFOSTS, and uart_putc().

Here is the call graph for this function:

uart_txfifo_fill_blocking()

void uart_txfifo_fill_blocking	(	UART_REGS_s *	regs,
		const uint8_t *	buffer,
		uint32_t	num_bytes )

This blocking function fills the UART transmit fifo.

Parameters

uart_regs	: pointer to the UART register space
buffer	: pointer to the data buffer
num_bytes	: number of bytes to be written to the transmit fifo

Return values

void

References UART_REGS_s::FIFOSTS, and uart_putc().

Here is the call graph for this function:

uart_puts()

void uart_puts	(	UART_REGS_s *	regs,
		const char *	data_char_arr )

This blocking function puts a string in the UART transmit fifo.

Parameters

uart_regs	: pointer to the UART register space
data_char_arr	: string input

Return values

void

References UART_REGS_s::FIFOSTS, and uart_putc().

Here is the call graph for this function:

uart_putc()

uint8_t uart_putc ( UART_REGS_s * regs, const unsigned char data_char )

inlinestatic

This static inline function puts a charcter in UART transmit fifo, returns the character written.

Parameters

uart_regs	: pointer to the UART register space
data_char	character input

Return values

data_char

References UART_TXDATA_u::packed_w, and UART_REGS_s::TXDATA.

Referenced by uart_puts(), uart_txfifo_fill_blocking(), uart_txfifo_fill_nonblocking(), and uart_txfifo_fill_static_nonblocking().

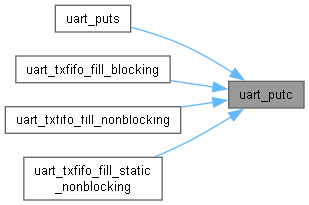

Here is the caller graph for this function:

uart_rxfifo_drain_nonblocking()

uint32_t uart_rxfifo_drain_nonblocking	(	UART_REGS_s *	regs,
		uint8_t *	buffer,
		uint32_t	num_bytes )

This non blocking function drains the UART receive fifo, user needs to update the buffer pointer and number of data bytes to be read, returns number of data bytes read.

Parameters

uart_regs	: pointer to the UART register space
buffer	: pointer to the data buffer
num_bytes	: number of bytes to be read from receive fifo

Return values

num_bytes_read

References UART_REGS_s::FIFOSTS, and uart_getc().

Here is the call graph for this function:

uart_rxfifo_drain_static_nonblocking()

bool uart_rxfifo_drain_static_nonblocking	(	UART_REGS_s *	regs,
		uint8_t *	buffer,
		uint32_t	num_bytes,
		uint32_t	rst_int_ctr )

This non blocking static function drains the UART receive fifo, auto updates the buffer pointer and number of data bytes to be read returns a boolean for transaction done.

Parameters

uart_regs	: pointer to the UART register space
buffer	: pointer to the data buffer
num_bytes	: number of bytes to be read from receive fifo
rst_int_ctr	: reset the internal counter once transaction is done

Return values

txn_done_status

References UART_REGS_s::FIFOSTS, and uart_getc().

Here is the call graph for this function:

uart_rxfifo_drain_blocking()

void uart_rxfifo_drain_blocking	(	UART_REGS_s *	regs,
		uint8_t *	buffer,
		uint32_t	num_bytes )

This blocking function drains the UART receive fifo.

Parameters

uart_regs	: pointer to the UART register space
buffer	: pointer to the data buffer
num_bytes	: number of bytes to be read from receive fifo

Return values

void

References UART_REGS_s::FIFOSTS, and uart_getc().

Here is the call graph for this function:

uart_getc()

uint8_t uart_getc ( UART_REGS_s * regs )

inlinestatic

This static inline function returns a charcter from the UART receive fifo.

Parameters

uart_regs

: pointer to the UART register space

Return values

uart_result

References UART_REGS_s::RXDATA.

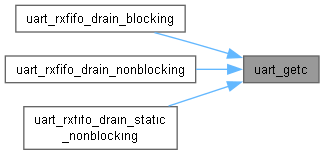

Referenced by uart_rxfifo_drain_blocking(), uart_rxfifo_drain_nonblocking(), and uart_rxfifo_drain_static_nonblocking().

Here is the caller graph for this function:

uart_read_cfg()

void uart_read_cfg	(	UART_REGS_s *	regs,
		uart_cfg_s *	rd_cfg )

This function reads the UART configurations from the register space, puts them in the configuration struct provided in the input.

Parameters

uart_regs	: pointer to the UART register space
uart_cfg_struct	: pointer to a uart configuration struct

Return values

void

References UART_REGS_s::CFG, UART_REGS_s::CLK_DIV, uart_cfg_s::clk_div, UART_REGS_s::CLK_SEL, uart_cfg_s::clk_sel, UART_REGS_s::CTRL, uart_cfg_s::cts_en, uart_cfg_s::even_parity, UART_REGS_s::FIFOLS, UART_REGS_s::GFCTL, uart_cfg_s::glitch_filter_width, uart_cfg_s::loopback_en, uart_cfg_s::majority_voting_en, uart_cfg_s::msb_first, uart_cfg_s::num_stop_bits, uart_cfg_s::oversampling, uart_cfg_s::parity_en, uart_cfg_s::rts_en, uart_cfg_s::rts_val, uart_cfg_s::rx_en, uart_cfg_s::rx_timeout_val, uart_cfg_s::stick_parity, uart_cfg_s::tx_en, uart_cfg_s::tx_out_ctrl, uart_cfg_s::tx_out_en, and uart_cfg_s::word_length.
