core_cm0.h File Reference

CMSIS Cortex-M0 Core Peripheral Access Layer Header File. More...

#include <stdint.h>
#include <core_cmInstr.h>
#include <core_cmFunc.h>

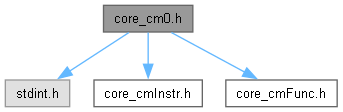

Include dependency graph for core_cm0.h:

Data Structures
union	APSR_Type
	Union type to access the Application Program Status Register (APSR). More...
union	IPSR_Type
	Union type to access the Interrupt Program Status Register (IPSR). More...
union	xPSR_Type
	Union type to access the Special-Purpose Program Status Registers (xPSR). More...
union	CONTROL_Type
	Union type to access the Control Registers (CONTROL). More...
struct	NVIC_Type
	Structure type to access the Nested Vectored Interrupt Controller (NVIC). More...
struct	SCB_Type
	Structure type to access the System Control Block (SCB). More...
struct	SysTick_Type
	Structure type to access the System Timer (SysTick). More...
struct	APSR_Type.b
struct	IPSR_Type.b
struct	xPSR_Type.b
struct	CONTROL_Type.b

Macros
#define	__CORE_CM0_H_GENERIC
#define	__CM0_CMSIS_VERSION_MAIN   (0x03)
#define	__CM0_CMSIS_VERSION_SUB   (0x20)
#define	__CM0_CMSIS_VERSION
#define	__CORTEX_M   (0x00)
#define	__ASM   __asm
#define	__INLINE   __inline
#define	__STATIC_INLINE   static __inline
#define	__FPU_USED   0
#define	__CORE_CM0_H_DEPENDANT
#define	__I   volatile const
#define	__O   volatile
#define	__IO   volatile
#define	SCB_CPUID_IMPLEMENTER_Pos   24
#define	SCB_CPUID_IMPLEMENTER_Msk   (0xFFUL << SCB_CPUID_IMPLEMENTER_Pos)
#define	SCB_CPUID_VARIANT_Pos   20
#define	SCB_CPUID_VARIANT_Msk   (0xFUL << SCB_CPUID_VARIANT_Pos)
#define	SCB_CPUID_ARCHITECTURE_Pos   16
#define	SCB_CPUID_ARCHITECTURE_Msk   (0xFUL << SCB_CPUID_ARCHITECTURE_Pos)
#define	SCB_CPUID_PARTNO_Pos   4
#define	SCB_CPUID_PARTNO_Msk   (0xFFFUL << SCB_CPUID_PARTNO_Pos)
#define	SCB_CPUID_REVISION_Pos   0
#define	SCB_CPUID_REVISION_Msk   (0xFUL << SCB_CPUID_REVISION_Pos)
#define	SCB_ICSR_NMIPENDSET_Pos   31
#define	SCB_ICSR_NMIPENDSET_Msk   (1UL << SCB_ICSR_NMIPENDSET_Pos)
#define	SCB_ICSR_PENDSVSET_Pos   28
#define	SCB_ICSR_PENDSVSET_Msk   (1UL << SCB_ICSR_PENDSVSET_Pos)
#define	SCB_ICSR_PENDSVCLR_Pos   27
#define	SCB_ICSR_PENDSVCLR_Msk   (1UL << SCB_ICSR_PENDSVCLR_Pos)
#define	SCB_ICSR_PENDSTSET_Pos   26
#define	SCB_ICSR_PENDSTSET_Msk   (1UL << SCB_ICSR_PENDSTSET_Pos)
#define	SCB_ICSR_PENDSTCLR_Pos   25
#define	SCB_ICSR_PENDSTCLR_Msk   (1UL << SCB_ICSR_PENDSTCLR_Pos)
#define	SCB_ICSR_ISRPREEMPT_Pos   23
#define	SCB_ICSR_ISRPREEMPT_Msk   (1UL << SCB_ICSR_ISRPREEMPT_Pos)
#define	SCB_ICSR_ISRPENDING_Pos   22
#define	SCB_ICSR_ISRPENDING_Msk   (1UL << SCB_ICSR_ISRPENDING_Pos)
#define	SCB_ICSR_VECTPENDING_Pos   12
#define	SCB_ICSR_VECTPENDING_Msk   (0x1FFUL << SCB_ICSR_VECTPENDING_Pos)
#define	SCB_ICSR_VECTACTIVE_Pos   0
#define	SCB_ICSR_VECTACTIVE_Msk   (0x1FFUL << SCB_ICSR_VECTACTIVE_Pos)
#define	SCB_AIRCR_VECTKEY_Pos   16
#define	SCB_AIRCR_VECTKEY_Msk   (0xFFFFUL << SCB_AIRCR_VECTKEY_Pos)
#define	SCB_AIRCR_VECTKEYSTAT_Pos   16
#define	SCB_AIRCR_VECTKEYSTAT_Msk   (0xFFFFUL << SCB_AIRCR_VECTKEYSTAT_Pos)
#define	SCB_AIRCR_ENDIANESS_Pos   15
#define	SCB_AIRCR_ENDIANESS_Msk   (1UL << SCB_AIRCR_ENDIANESS_Pos)
#define	SCB_AIRCR_SYSRESETREQ_Pos   2
#define	SCB_AIRCR_SYSRESETREQ_Msk   (1UL << SCB_AIRCR_SYSRESETREQ_Pos)
#define	SCB_AIRCR_VECTCLRACTIVE_Pos   1
#define	SCB_AIRCR_VECTCLRACTIVE_Msk   (1UL << SCB_AIRCR_VECTCLRACTIVE_Pos)
#define	SCB_SCR_SEVONPEND_Pos   4
#define	SCB_SCR_SEVONPEND_Msk   (1UL << SCB_SCR_SEVONPEND_Pos)
#define	SCB_SCR_SLEEPDEEP_Pos   2
#define	SCB_SCR_SLEEPDEEP_Msk   (1UL << SCB_SCR_SLEEPDEEP_Pos)
#define	SCB_SCR_SLEEPONEXIT_Pos   1
#define	SCB_SCR_SLEEPONEXIT_Msk   (1UL << SCB_SCR_SLEEPONEXIT_Pos)
#define	SCB_CCR_STKALIGN_Pos   9
#define	SCB_CCR_STKALIGN_Msk   (1UL << SCB_CCR_STKALIGN_Pos)
#define	SCB_CCR_UNALIGN_TRP_Pos   3
#define	SCB_CCR_UNALIGN_TRP_Msk   (1UL << SCB_CCR_UNALIGN_TRP_Pos)
#define	SCB_SHCSR_SVCALLPENDED_Pos   15
#define	SCB_SHCSR_SVCALLPENDED_Msk   (1UL << SCB_SHCSR_SVCALLPENDED_Pos)
#define	SysTick_CTRL_COUNTFLAG_Pos   16
#define	SysTick_CTRL_COUNTFLAG_Msk   (1UL << SysTick_CTRL_COUNTFLAG_Pos)
#define	SysTick_CTRL_CLKSOURCE_Pos   2
#define	SysTick_CTRL_CLKSOURCE_Msk   (1UL << SysTick_CTRL_CLKSOURCE_Pos)
#define	SysTick_CTRL_TICKINT_Pos   1
#define	SysTick_CTRL_TICKINT_Msk   (1UL << SysTick_CTRL_TICKINT_Pos)
#define	SysTick_CTRL_ENABLE_Pos   0
#define	SysTick_CTRL_ENABLE_Msk   (1UL << SysTick_CTRL_ENABLE_Pos)
#define	SysTick_LOAD_RELOAD_Pos   0
#define	SysTick_LOAD_RELOAD_Msk   (0xFFFFFFUL << SysTick_LOAD_RELOAD_Pos)
#define	SysTick_VAL_CURRENT_Pos   0
#define	SysTick_VAL_CURRENT_Msk   (0xFFFFFFUL << SysTick_VAL_CURRENT_Pos)
#define	SysTick_CALIB_NOREF_Pos   31
#define	SysTick_CALIB_NOREF_Msk   (1UL << SysTick_CALIB_NOREF_Pos)
#define	SysTick_CALIB_SKEW_Pos   30
#define	SysTick_CALIB_SKEW_Msk   (1UL << SysTick_CALIB_SKEW_Pos)
#define	SysTick_CALIB_TENMS_Pos   0
#define	SysTick_CALIB_TENMS_Msk   (0xFFFFFFUL << SysTick_VAL_CURRENT_Pos)
#define	SCS_BASE   (0xE000E000UL)
#define	SysTick_BASE   (SCS_BASE + 0x0010UL)
#define	NVIC_BASE   (SCS_BASE + 0x0100UL)
#define	SCB_BASE   (SCS_BASE + 0x0D00UL)
#define	SCB   ((SCB_Type *) SCB_BASE )
#define	SysTick   ((SysTick_Type *) SysTick_BASE )
#define	NVIC   ((NVIC_Type *) NVIC_BASE )
#define	_BIT_SHIFT(IRQn)
#define	_SHP_IDX(IRQn)
#define	_IP_IDX(IRQn)
__STATIC_INLINE void	NVIC_EnableIRQ (IRQn_Type IRQn)
	Enable External Interrupt.
__STATIC_INLINE void	NVIC_DisableIRQ (IRQn_Type IRQn)
	Disable External Interrupt.
__STATIC_INLINE uint32_t	NVIC_GetPendingIRQ (IRQn_Type IRQn)
	Get Pending Interrupt.
__STATIC_INLINE void	NVIC_SetPendingIRQ (IRQn_Type IRQn)
	Set Pending Interrupt.
__STATIC_INLINE void	NVIC_ClearPendingIRQ (IRQn_Type IRQn)
	Clear Pending Interrupt.
__STATIC_INLINE void	NVIC_SetPriority (IRQn_Type IRQn, uint32_t priority)
	Set Interrupt Priority.
__STATIC_INLINE uint32_t	NVIC_GetPriority (IRQn_Type IRQn)
	Get Interrupt Priority.
__STATIC_INLINE void	NVIC_SystemReset (void)
	System Reset.
__STATIC_INLINE uint32_t	SysTick_Config (uint32_t ticks)
	System Tick Configuration.

Detailed Description

CMSIS Cortex-M0 Core Peripheral Access Layer Header File.

Version

V3.20

Date

25. February 2013

Note

Macro Definition Documentation

__CORE_CM0_H_GENERIC

#define __CORE_CM0_H_GENERIC

__CM0_CMSIS_VERSION_MAIN

#define __CM0_CMSIS_VERSION_MAIN   (0x03)

[31:16] CMSIS HAL main version

__CM0_CMSIS_VERSION_SUB

#define __CM0_CMSIS_VERSION_SUB   (0x20)

[15:0] CMSIS HAL sub version

__CM0_CMSIS_VERSION

#define __CM0_CMSIS_VERSION

Value:

                                    ((__CM0_CMSIS_VERSION_MAIN << 16) | \
                                    __CM0_CMSIS_VERSION_SUB          )

CMSIS HAL version number

__CORTEX_M

#define __CORTEX_M   (0x00)

Cortex-M Core

__ASM

#define __ASM   __asm

asm keyword for ARM Compiler

Referenced by __attribute__(), __attribute__(), __get_APSR(), __get_CONTROL(), __get_IPSR(), __get_MSP(), __get_PRIMASK(), __get_PSP(), __get_xPSR(), __set_CONTROL(), __set_MSP(), __set_PRIMASK(), and __set_PSP().

__INLINE

#define __INLINE   __inline

inline keyword for ARM Compiler

__STATIC_INLINE

#define __STATIC_INLINE   static __inline

Referenced by __attribute__(), __attribute__(), __get_APSR(), __get_CONTROL(), __get_IPSR(), __get_MSP(), __get_PRIMASK(), __get_PSP(), __get_xPSR(), __set_CONTROL(), __set_MSP(), __set_PRIMASK(), __set_PSP(), NVIC_ClearPendingIRQ(), NVIC_DisableIRQ(), NVIC_EnableIRQ(), NVIC_GetPendingIRQ(), NVIC_GetPriority(), NVIC_SetPendingIRQ(), NVIC_SetPriority(), NVIC_SystemReset(), and SysTick_Config().

__FPU_USED

#define __FPU_USED   0

__FPU_USED indicates whether an FPU is used or not. This core does not support an FPU at all

__CORE_CM0_H_DEPENDANT

#define __CORE_CM0_H_DEPENDANT

__I

#define __I   volatile const

Defines 'read only' permissions

__O

#define __O   volatile

Defines 'write only' permissions

__IO

#define __IO   volatile

Defines 'read / write' permissions
