i2c.c File Reference

#include "i2c.h"

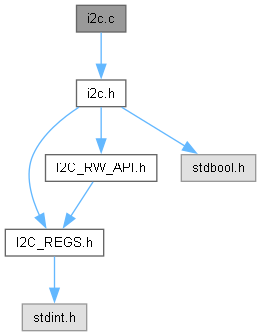

Include dependency graph for i2c.c:

Functions
void	i2c_clk_cfg_set (I2C_REGS_s *regs, I2C_CLK_CTRL_CLKSEL_E clksel, uint8_t clkdiv)
	This function updates the clock settings used in I2C.
void	i2c_mst_enable (I2C_REGS_s *regs)
	This function enables I2C master.
void	i2c_slv_enable (I2C_REGS_s *regs)
	This function enables I2C slave.
void	i2c_mst_disable (I2C_REGS_s *regs)
	This function disables I2C master.
void	i2c_slv_disable (I2C_REGS_s *regs)
	This function disables I2C slave.
void	i2c_counter_cfg_set (I2C_REGS_s *regs, i2c_counter_cfg_t *i2c_counter_cfg)
	This function configures the counter config register required for I2C Master/Slave.
void	i2c_slv_cfg_set (I2C_REGS_s *regs, i2c_slv_cfg_t *i2c_slv_cfg)
	This function configures I2C slave.
void	i2c_glitch_width_cfg_set (I2C_REGS_s *regs, uint8_t glitch_width)
	This function sets the glitch width for the glitch filter.
uint8_t	i2c_txfifo_fill_nonblocking (I2C_REGS_s *regs, const uint8_t *buffer, uint8_t num_bytes)
	This function pushes bytes into TX FIFO (Non-blocking)
void	i2c_txfifo_fill_blocking (I2C_REGS_s *regs, const uint8_t *buffer, uint8_t num_bytes)
	This function pushes bytes into TX FIFO (Blocking)
uint8_t	i2c_rxfifo_drain_nonblocking (I2C_REGS_s *regs, uint8_t *buffer, uint8_t num_bytes)
	This function pops bytes from the RX FIFO (Non-blocking)
void	i2c_rxfifo_drain_blocking (I2C_REGS_s *regs, uint8_t *buffer, uint8_t num_bytes)
	This function pops bytes from the RX FIFO (Blocking)
bool	i2c_slv_rd_wr_sts_get (I2C_REGS_s *regs)
	This function reads the status register which contains wheather the slave is in read or write mode.
void	i2c_slv_sts_get (I2C_REGS_s *regs, i2c_slv_sts_t *i2c_slv_sts)
	This function reads all the status registers related to I2C Slave.
void	i2c_wait_for_slv_start (I2C_REGS_s *regs)
	This function is blocking. It waits until I2C slave recieves a start from the Master.
void	i2c_wait_for_rx_done (I2C_REGS_s *regs)
	This function is blocking. It waits until I2C slave recieves a byte from the Master.
void	i2c_wait_for_tx_done (I2C_REGS_s *regs)
	This function is blocking. It waits until I2C slave sends a byte to the Master.
void	i2c_wait_for_slv_stop (I2C_REGS_s *regs)
	This function polls stop bit sent by the master.
void	i2c_slv_ackval (I2C_REGS_s *regs, I2C_SLAVE_BYTE_ACK_SLV_ACKVAL_E ackval)
	This function controls whether the slave sends a ACK or a NACK.

Function Documentation

i2c_clk_cfg_set()

void i2c_clk_cfg_set	(	I2C_REGS_s *	regs,
		I2C_CLK_CTRL_CLKSEL_E	clksel,
		uint8_t	clkdiv )

This function updates the clock settings used in I2C.

Parameters

regs	: pointer to the i2c register space
clksel	: Enum for i2c clock select
clkdiv	: Value for the clock divider

Return values

void

References I2C_REGS_s::CLK_CTRL.

i2c_mst_enable()

void i2c_mst_enable

(

I2C_REGS_s *

regs

)

This function enables I2C master.

Parameters

regs	: pointer to the i2c register space

Return values

void

References I2C_REGS_s::MASTER_CFG.

i2c_slv_enable()

void i2c_slv_enable

(

I2C_REGS_s *

regs

)

This function enables I2C slave.

Parameters

regs	: pointer to the i2c register space

Return values

void

References I2C_REGS_s::SLAVE_CTRL.

i2c_mst_disable()

void i2c_mst_disable

(

I2C_REGS_s *

regs

)

This function disables I2C master.

Parameters

regs	: pointer to the i2c register space

Return values

void

References I2C_REGS_s::MASTER_CFG.

i2c_slv_disable()

void i2c_slv_disable

(

I2C_REGS_s *

regs

)

This function disables I2C slave.

Parameters

regs	: pointer to the i2c register space

Return values

void

References I2C_REGS_s::SLAVE_CTRL.

i2c_counter_cfg_set()

void i2c_counter_cfg_set	(	I2C_REGS_s *	regs,
		i2c_counter_cfg_t *	i2c_counter_cfg )

This function configures the counter config register required for I2C Master/Slave.

Parameters

regs	: pointer to the i2c register space
i2c_counter_cfg	: pointer to the struct containing i2c counter config

Return values

void

References I2C_REGS_s::CLK_CTRL, I2C_REGS_s::MASTER_CLKSTRETCH_CNT, I2C_REGS_s::MASTER_SCL_GEN, I2C_REGS_s::MASTER_TIMING_CONSTRAINT, i2c_counter_cfg_t::mst_max_clkstretch_cnt, i2c_counter_cfg_t::mst_restart_setup_cnt, i2c_counter_cfg_t::mst_scl_cnt_high_val, i2c_counter_cfg_t::mst_scl_cnt_low_val, i2c_counter_cfg_t::mst_scl_start_cnt, i2c_counter_cfg_t::mst_sda_stop_cnt, i2c_counter_cfg_t::mst_stop_start_buffer_cnt, i2c_counter_cfg_t::setup_cnt, I2C_REGS_s::SLAVE_CLKSTRETCH_CNT, i2c_counter_cfg_t::slv_max_clkstretch_cnt, I2C_REGS_s::SMBUS_TIMEOUT_CNT, and i2c_counter_cfg_t::smbus_timeout_cnt.

i2c_slv_cfg_set()

void i2c_slv_cfg_set	(	I2C_REGS_s *	regs,
		i2c_slv_cfg_t *	i2c_slv_cfg )

This function configures I2C slave.

Parameters

regs	: pointer to the i2c register space
i2c_slv_cfg	: pointer to the struct containing i2c slave config

Return values

void

References I2C_REGS_s::FIFO_CTRL, i2c_slv_cfg_t::i2c_pec_en, I2C_REGS_s::PEC_CTRL, i2c_slv_cfg_t::rxfifo_en, I2C_REGS_s::SLAVE_ACK_CFG, I2C_REGS_s::SLAVE_ADDR, I2C_REGS_s::SLAVE_CTRL, i2c_slv_cfg_t::slv_addr1, i2c_slv_cfg_t::slv_addr2, i2c_slv_cfg_t::slv_addr2_en, i2c_slv_cfg_t::slv_addr2_mask, i2c_slv_cfg_t::slv_addr_auto_ack_en, i2c_slv_cfg_t::slv_addr_mode, i2c_slv_cfg_t::slv_alres_addr_en, i2c_slv_cfg_t::slv_auto_ack_en, i2c_slv_cfg_t::slv_clkstretch_en, i2c_slv_cfg_t::slv_def_dev_addr_en, i2c_slv_cfg_t::slv_def_host_addr_en, i2c_slv_cfg_t::slv_gencall_en, i2c_slv_cfg_t::slv_low_pwr_wakeup_en, i2c_slv_cfg_t::slv_txempty_intr_on_tx_req, i2c_slv_cfg_t::slv_txtrig_at_txmode, i2c_slv_cfg_t::slv_txwait_stale_fifo, and i2c_slv_cfg_t::txfifo_en.

i2c_glitch_width_cfg_set()

void i2c_glitch_width_cfg_set	(	I2C_REGS_s *	regs,
		uint8_t	glitch_width )

This function sets the glitch width for the glitch filter.

Parameters

regs	: pointer to the i2c register space
glitch_width	: glitch width value to be programmed

Return values

void

References I2C_REGS_s::GLITCH_FILTER_CFG.

i2c_txfifo_fill_nonblocking()

uint8_t i2c_txfifo_fill_nonblocking	(	I2C_REGS_s *	regs,
		const uint8_t *	buffer,
		uint8_t	num_bytes )

This function pushes bytes into TX FIFO (Non-blocking)

Parameters

regs	: pointer to the i2c register space
buffer	: pointer to the buffer space containing the data to pushed into the tx fifo
num_bytes	: number of bytes to be written into the tx fifo

Return values

The	number of bytes written into the TX FIFO

References I2C_REGS_s::FIFO_STS, I2C_TXDATA_u::packed_byte, and I2C_REGS_s::TXDATA.

i2c_txfifo_fill_blocking()

void i2c_txfifo_fill_blocking	(	I2C_REGS_s *	regs,
		const uint8_t *	buffer,
		uint8_t	num_bytes )

This function pushes bytes into TX FIFO (Blocking)

Parameters

regs	: pointer to the i2c register space
buffer	: pointer to the buffer space containing the data to pushed into the tx fifo
num_bytes	: number of bytes to be written into the tx fifo

Return values

void

References I2C_REGS_s::FIFO_STS, I2C_TXDATA_u::packed_byte, and I2C_REGS_s::TXDATA.

i2c_rxfifo_drain_nonblocking()

uint8_t i2c_rxfifo_drain_nonblocking	(	I2C_REGS_s *	regs,
		uint8_t *	buffer,
		uint8_t	num_bytes )

This function pops bytes from the RX FIFO (Non-blocking)

Parameters

regs	: pointer to the i2c register space
buffer	: pointer to the buffer space containing the data to be copied to from the RX FIFO
num_bytes	: number of bytes to be written into the tx fifo

Return values

The	number of bytes read from the RX FIFO

References I2C_REGS_s::FIFO_STS, I2C_RXDATA_u::packed_byte, and I2C_REGS_s::RXDATA.

i2c_rxfifo_drain_blocking()

void i2c_rxfifo_drain_blocking	(	I2C_REGS_s *	regs,
		uint8_t *	buffer,
		uint8_t	num_bytes )

This function pops bytes from the RX FIFO (Blocking)

Parameters

regs	: pointer to the i2c register space
buffer	: pointer to the buffer space containing the data to be copied to from the RX FIFO
num_bytes	: number of bytes to be written into the tx fifo

Return values

void

References I2C_REGS_s::FIFO_STS, I2C_RXDATA_u::packed_byte, and I2C_REGS_s::RXDATA.

i2c_slv_rd_wr_sts_get()

bool i2c_slv_rd_wr_sts_get

(

I2C_REGS_s *

regs

)

This function reads the status register which contains wheather the slave is in read or write mode.

Parameters

regs	: pointer to the i2c register space

Return values

Returns

0 for write transaction and 1 for read transaction

References I2C_REGS_s::SPARE_STS.

i2c_slv_sts_get()

void i2c_slv_sts_get	(	I2C_REGS_s *	regs,
		i2c_slv_sts_t *	i2c_slv_sts )

This function reads all the status registers related to I2C Slave.

Parameters

regs	: pointer to the i2c register space
i2c_slv_sts	: pointer to the struct which will contain the register values read

Return values

void

References i2c_slv_sts_t::quick_cmd_rw, i2c_slv_sts_t::quick_cmd_sts, I2C_REGS_s::SLAVE_STS, i2c_slv_sts_t::slv_addr2_sel, i2c_slv_sts_t::slv_addr_match, i2c_slv_sts_t::slv_busbsy, i2c_slv_sts_t::slv_rx_req, i2c_slv_sts_t::slv_rxmode, i2c_slv_sts_t::slv_stale_txfifo, i2c_slv_sts_t::slv_tx_req, and i2c_slv_sts_t::slv_txmode.

i2c_wait_for_slv_start()

void i2c_wait_for_slv_start

(

I2C_REGS_s *

regs

)

This function is blocking. It waits until I2C slave recieves a start from the Master.

Parameters

regs	: pointer to the i2c register space

Return values

void

References I2C_INTR_EVENT_CLEAR(), I2C_INTR_EVENT_SLV_START_IDX, and I2C_REGS_s::INTR_EVENT.

Here is the call graph for this function:

i2c_wait_for_rx_done()

void i2c_wait_for_rx_done

(

I2C_REGS_s *

regs

)

This function is blocking. It waits until I2C slave recieves a byte from the Master.

Parameters

regs	: pointer to the i2c register space

Return values

void

References I2C_INTR_EVENT_CLEAR(), I2C_INTR_EVENT_RX_DONE_IDX, and I2C_REGS_s::INTR_EVENT.

Here is the call graph for this function:

i2c_wait_for_tx_done()

void i2c_wait_for_tx_done

(

I2C_REGS_s *

regs

)

This function is blocking. It waits until I2C slave sends a byte to the Master.

Parameters

regs	: pointer to the i2c register space

Return values

void

References I2C_INTR_EVENT_CLEAR(), I2C_INTR_EVENT_TX_DONE_IDX, and I2C_REGS_s::INTR_EVENT.

Here is the call graph for this function:

i2c_wait_for_slv_stop()

void i2c_wait_for_slv_stop

(

I2C_REGS_s *

regs

)

This function polls stop bit sent by the master.

Parameters

regs	: pointer to the i2c register space

Return values

void

References I2C_INTR_EVENT_CLEAR(), I2C_INTR_EVENT_SLV_STOP_IDX, and I2C_REGS_s::INTR_EVENT.

Here is the call graph for this function:

i2c_slv_ackval()

void i2c_slv_ackval	(	I2C_REGS_s *	regs,
		I2C_SLAVE_BYTE_ACK_SLV_ACKVAL_E	ackval )

This function controls whether the slave sends a ACK or a NACK.

Parameters

regs	: pointer to the i2c register space

Return values

void

References I2C_REGS_s::SLAVE_BYTE_ACK.
